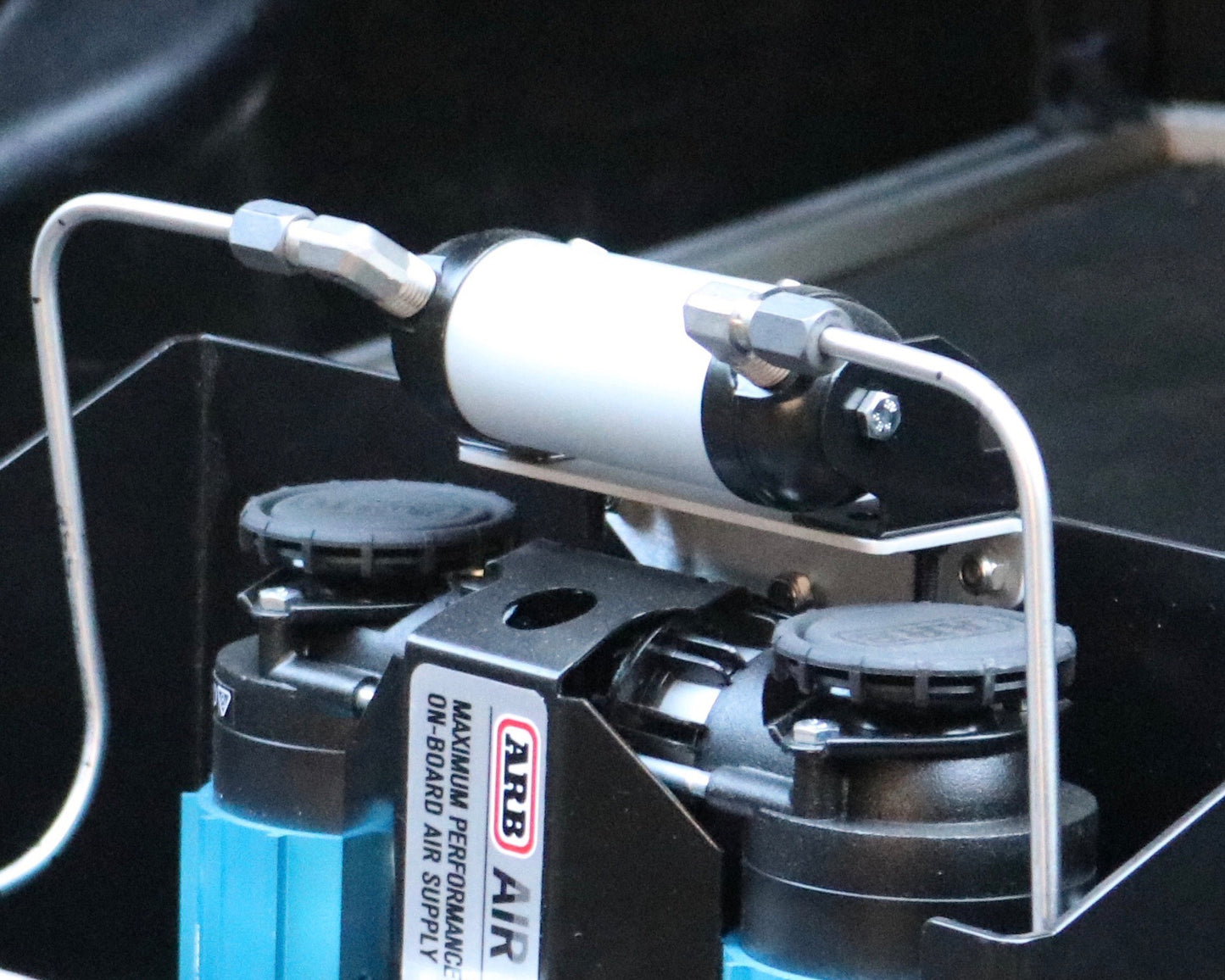

ARB Locker Manifold

The Air Locker Manifold Kit includes:

• Manifold body with mounting bracket
• 2 x 1/8" BSPP ports for installation of up to 2 x Air Locker solenoids
• 2 x 1/4" NPT ports, one to be used as an input and the second could be used for installation of a pump up kit (ARB 171302)
• 1 x high temperature resistant Teflon stainless steel braided hose with heavy duty JIC4 fittings
• 2 x JIC4 - 1/4" NPT nipples to connect the included hose to the compressor outlet and manifold kit input
• 2 x M6 hex head bolt and nylon lock-nuts for securing the manifold kit
